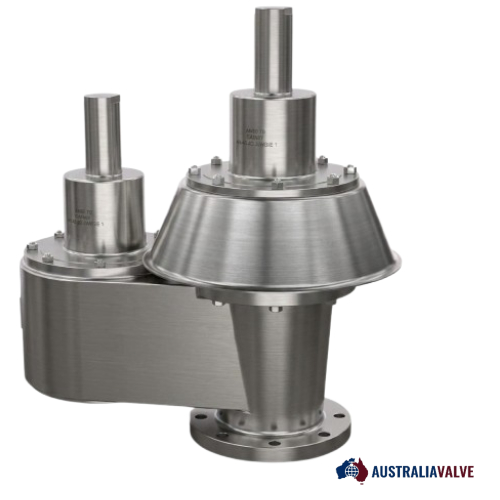

Air & Vacuum Breaker Valve (Large Orifice Air Valve) is engineered to handle large volumes of air during the filling and draining of liquid piping systems. Operating primarily during system startup, shutdown, and unexpected pressure drops, this valve exhausts bulk air to prevent air binding during pipeline filling and rapidly admits atmospheric air to break vacuums and prevent structural pipe collapse during draining or pump trips.
Designed with a full-bore, large orifice mechanism, the air and vacuum breaker valve remains open until liquid fills the valve chamber, lifting the float to seal the orifice. Once the pipeline is pressurized, the valve remains closed under line pressure and reopens immediately if system pressure drops below atmospheric levels. Widely deployed across municipal water transmission mains, pump discharge headers, irrigation networks, and industrial utility loops, it provides essential protection against surge damage, column separation, and vacuum formation.
Key Features
-
High-Capacity Air Intake & Discharge: Large orifice matched to inlet diameter allows maximum volumetric air flow during filling and draining operations.
-
Vacuum Collapse Prevention: Instantly breaks negative pressure conditions, protecting thin-walled and large-diameter pipes from implosion.
-
Non-Clogging Float Design: Aerodynamically designed buoyant floats resist premature closure caused by high-velocity air discharge.
-
Drop-Tight Low-Pressure Sealing: Precision-engineered resilient seats ensure a complete seal even at low operating head pressures.
-
Corrosion-Resistant Construction: Built with heavy-duty bodies and stainless steel trim to withstand aggressive media and harsh weather conditions.
Brands We Provide
-
FLOWORK
-
ARMSTRONG
-
GESTRA
Applications
-
High-Point Locations on Long Transmission Pipelines
-
Pump Discharge Lines & Main Header Assemblies
-
Water & Wastewater Treatment Plant Filling/Draining Stations
-
Agricultural & Commercial Irrigation Lines
-
Industrial Cooling Water Circuits & Utility Networks
-
Storage Tank Filling & Discharge Lines
Benefits
-
Structural Pipeline Safety: Guards lines against catastrophic vacuum collapse caused by line breaks or sudden pump shut-offs.
-
Efficient Pipeline Filling: Eliminates air pockets during initial charging, allowing rapid filling without pressure surges or flow blockages.
-
Reduces Surge & Water Hammer: Prevents fluid column separation and air-lock conditions that lead to severe pressure shock waves.
-
Low Maintenance Design: Simple, robust float and seat mechanism ensures extended operational life with minimal field service requirements.
Our Air & Vacuum Breaker Valves at AustraliaValves.com are manufactured to international utility standards, offering custom materials, pressure ratings, and flanged or threaded end connections to suit your project requirements across Australia.
For technical datasheets, air capacity curves, or to request a quote, please contact us.
