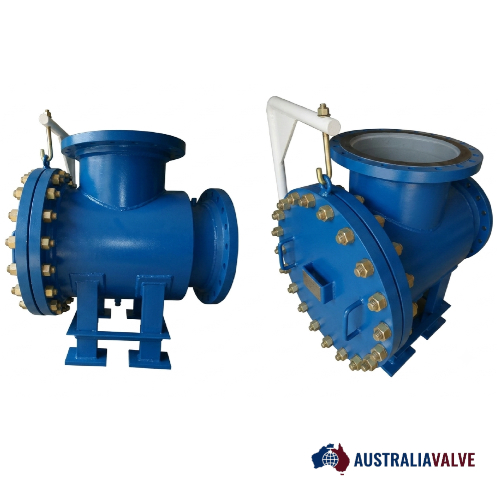

Suction Diffuser

Suction Diffuser is a multi-functional pipeline component installed directly at the suction side of pumps to provide optimal flow conditioning and space-saving pipeline protection. By integrating an elbow, a flow straightener, a strainer, and a reducer into a single compact housing, it eliminates the need for long, straight runs of pipe upstream of the pump. The suction diffuser ensures a smooth, laminar fluid flow profile entering the pump impeller, which maximizes hydraulic efficiency, prevents turbulent flow-induced vibration, and protects the pump from premature mechanical wear, cavitation, and dry running.

At AustraliaValves.com, we supply high-performance Suction Diffusers engineered for structural durability, minimum pressure drop, and seamless space optimization in congested plant layouts. Our robust diffusers are manufactured from certified, heavy-duty industrial materials such as Cast Carbon Steel (ASTM A216 WCB/WCC), Stainless Steel (ASTM A351 CF8/CF8M), and Ductile Iron, ensuring they withstand high working pressures and thermal expansions common in demanding processing loops. The internal components—including the perforated conditioning cone and the removable start-up screen—are fabricated from premium-grade SS304 or SS316 stainless steel to ensure exceptional corrosion resistance and longevity.

The engineering design features an integrated guide vane mechanism that smoothly straightens the fluid path, drastically reducing turbulence immediately prior to pump entry. To protect internal pump assemblies during commissioning and continuous operation, the suction diffuser features a dual-filtration system: a rugged permanent perforated basket to trap large debris, and a fine mesh start-up strainer to capture fine construction residue, which can be easily removed after the initial system flush. Available in various size configurations, these units can accommodate unequal inlet and outlet sizes, acting as a structural reducing elbow to simplify piping geometry.

Engineered with a convenient bolted cover and a dedicated blowdown drain connection, our suction diffusers permit quick internal access for basket cleaning, debris flushing, and routine servicing without dismantling the pipeline. High-quality sealing gaskets made from specialized EPDM, NBR, or flexible graphite guarantee leak-free operation under high-head or variable-flow conditions.

Our heavy-duty Suction Diffusers are widely utilized across Australia—optimizing commercial, industrial, and civil pumping infrastructure in Western Australia, Queensland, New South Wales, and Victoria. They are the ideal choice for chilled and condenser water systems in HVAC setups, industrial water supply stations, desalination infrastructure, chemical processing plants, and mineral refining loops where spatial efficiency and pump protection are non-negotiable.

Procure your high-integrity Suction Diffusers from AustraliaValves.com to secure maximum pump protection, space-saving installation, and superior build quality. AustraliaValves.com delivers dependable fluid conditioning and pipeline protection solutions built in strict accordance with international engineering design and testing standards, making us the trusted technical partner for engineering contractors and asset owners across the country.

Sourced from Premium Global Manufacturers:

• SVR Global Severe Service Flow Conditioners

• FloWork Piping Solutions

• GCCValves Pump Protection Systems
